TSP series

TSP - Thermally Stable Polycrystalline Diamond

Thermally Stable Polycrystalline (TSP) diamond can be manufactured into a variety of sizes and shapes (Cubes, Cylinders, Discs, Rectangles, Triangles, Spheres etc.) that can be inserted into cutting tools, drilling bits, reamers, wire drawing dies, and other wear-resistant components.

TSP mining and oil drilling bits are best suited for more abrasive or broken formations. Drill bits and reaming shells made with TSP diamonds are suitable for drilling in soft rocks with hardness below 7 degrees, such as lime rock, marble, shale, etc; and in medium to hard rocks with coarse grains, such as sedimentary rock. The results obtained in drilling medium to hard rocks and non-uniform abrasive formations are much better than those obtained with drill bits impregnated or surface-set with single, natural diamond crystals.

One significant advantage of our TSP diamond is its high thermal stability. Our TSP Cutters can withstand high temperatures of ~1200 degrees centigrade in a non-oxidizing atmosphere. Moreover, the relative wear resistance of the TSP diamond body remains the same under high temperature conditions.







Because of these excellent properties, our TSP Cutters can be made into tools and other products by means of high-temperature brazing or high-temperature sintering.

Custom sizes, shapes, angles and coatings available.

Shape
Specification
Dimension (D x H)

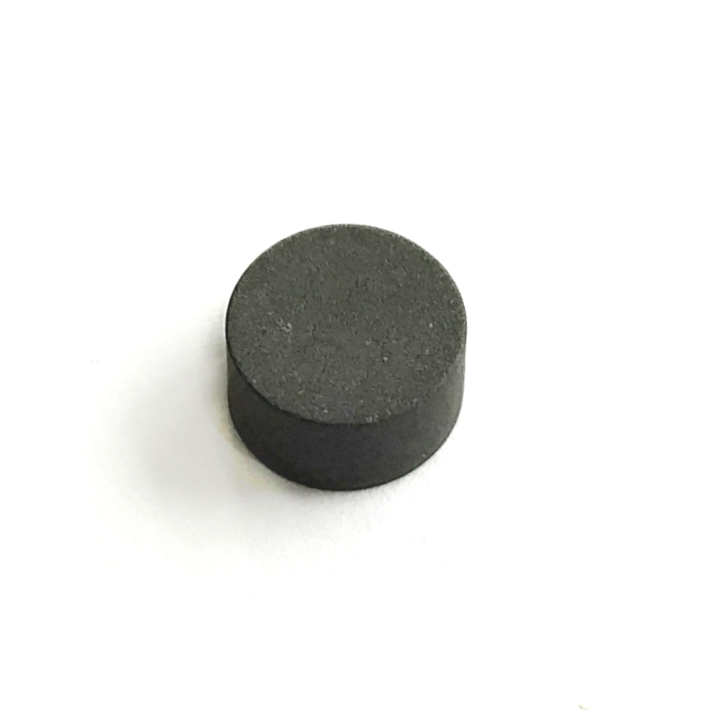

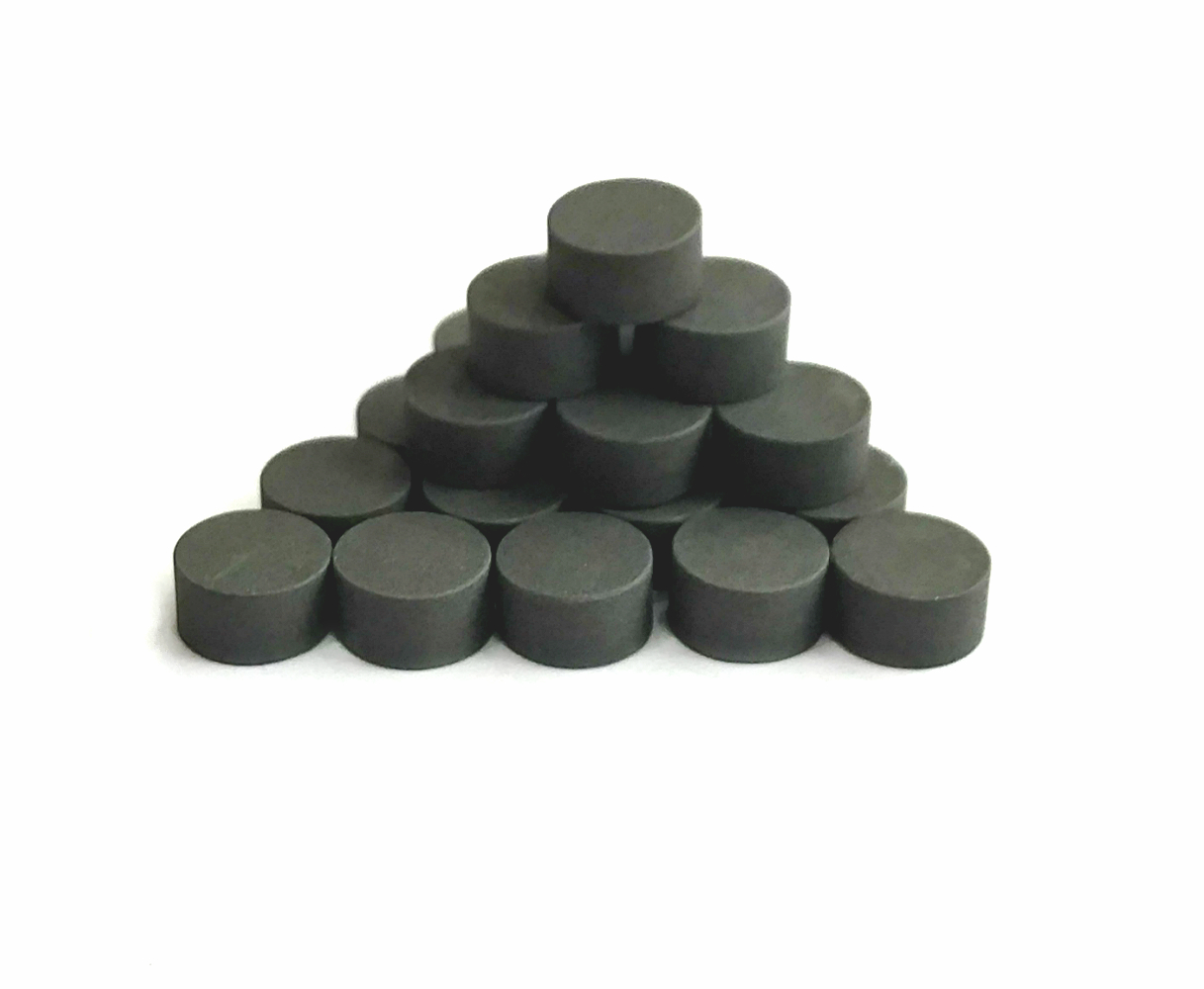

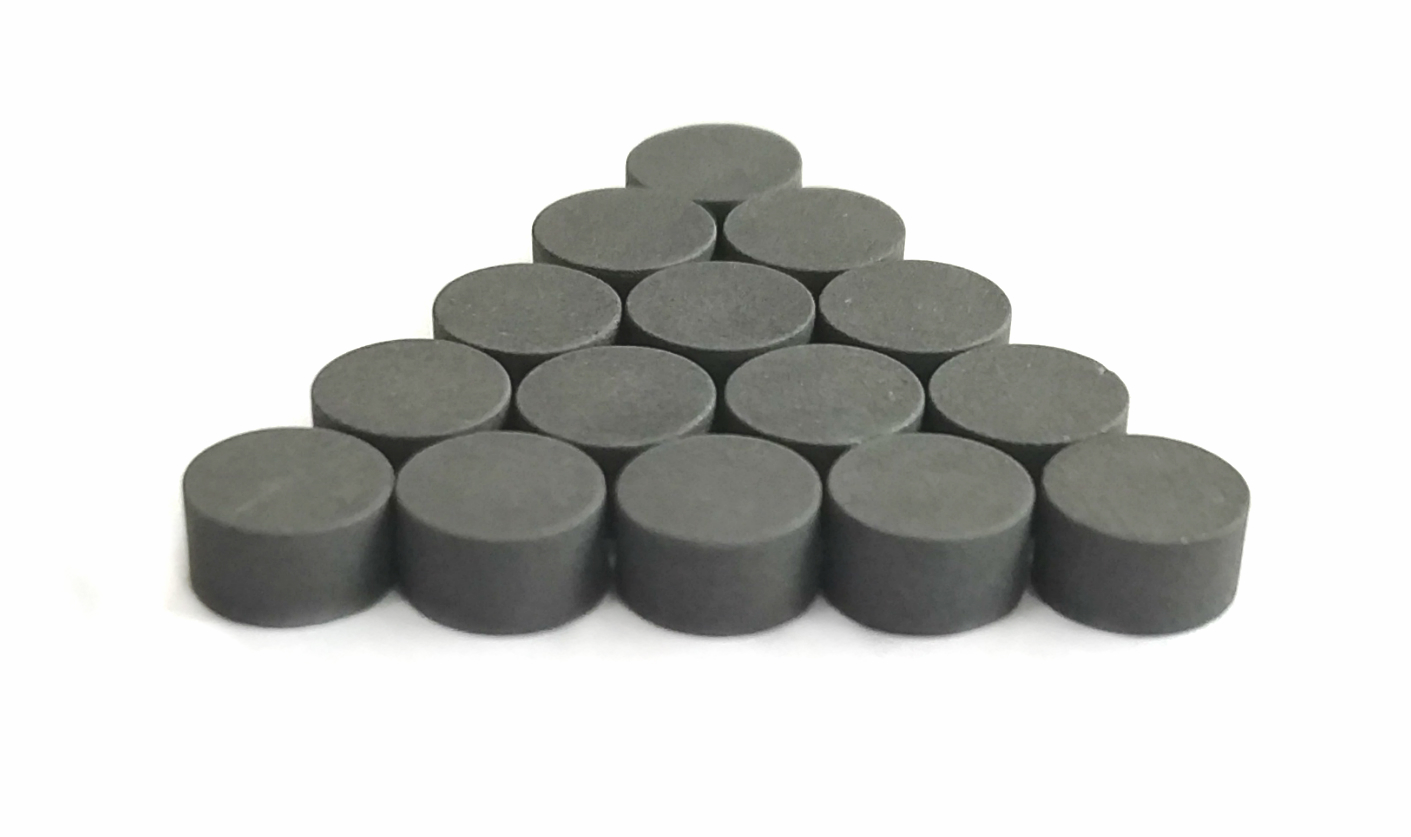

Discs


D: diameter. H: height
HW5222
HW6333
5.2X2.2
6.3X3.3
HW8030
HW8050
8.0X3.0
8.0X5.0
HW1050
HW1435
10.0X5.0
14.0X3.5
Shape
Specification
Dimension(Wx B x T)

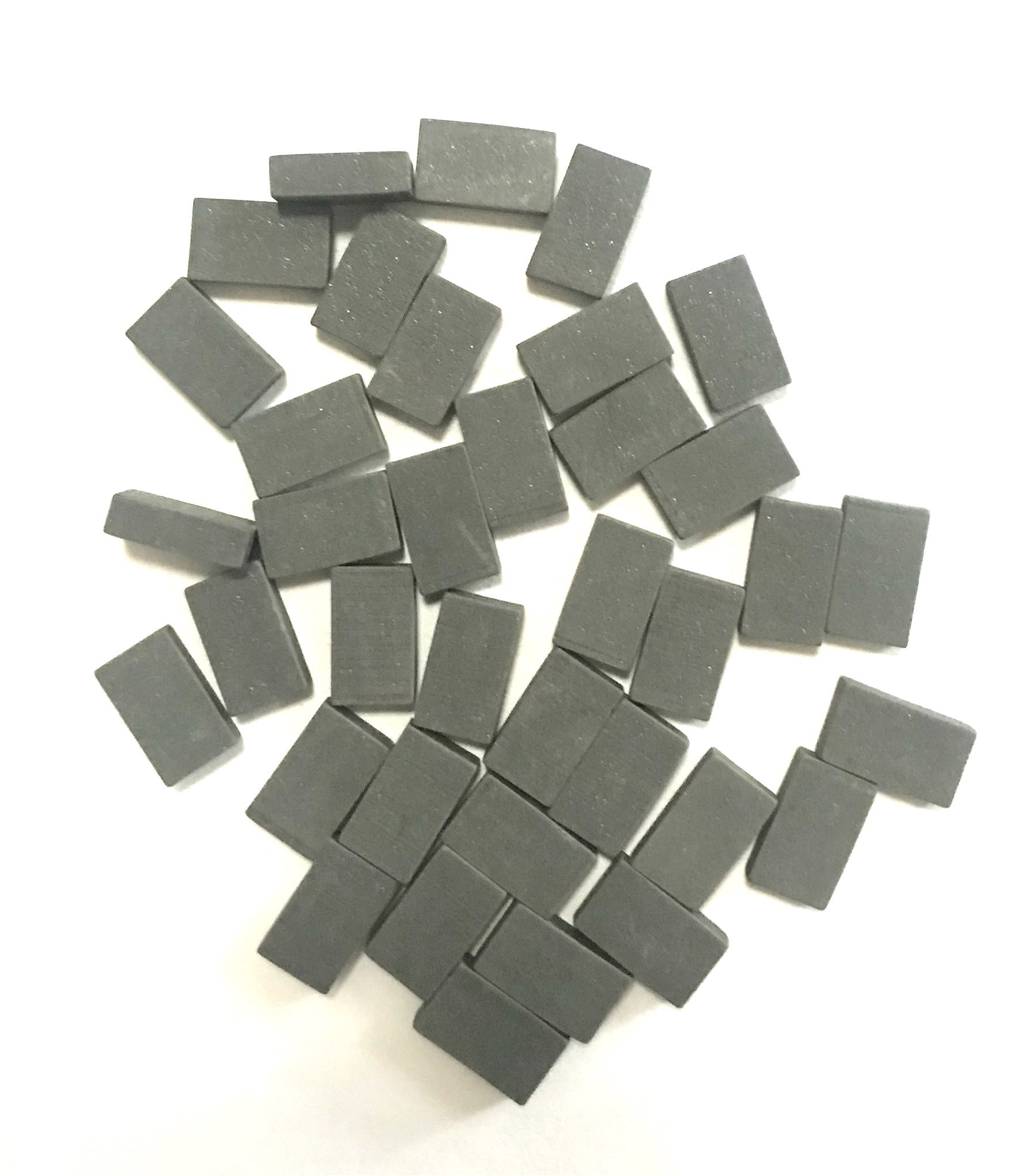

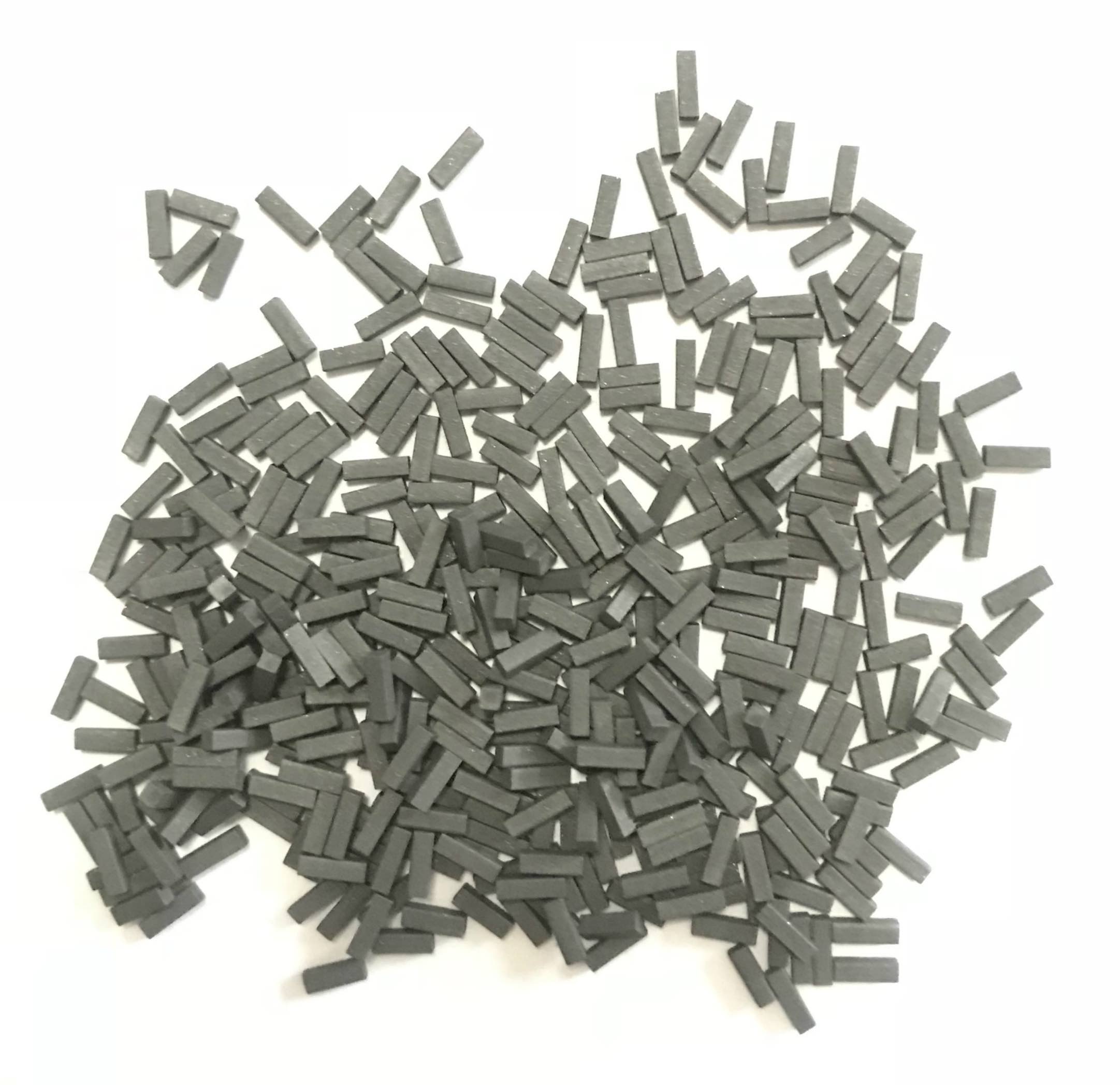

Rectangles


W: length B: width T : thickness
HWL151515
1.5x1.5x1.5
HWL151530
1.5x1.5x3
HWL151550
1.5x1.5x5
HWL303050
3x3x5
HWL404040
4x4x4
HWL404040
4x4x6
HWL505050
5x5x5
Shape
Specification
Dimension(Wx B x T)
Triangles


W 、B: width T : height
HWT404026
4x4x4x2.6
HWT606043
6.2x6.2x6.2x4.3

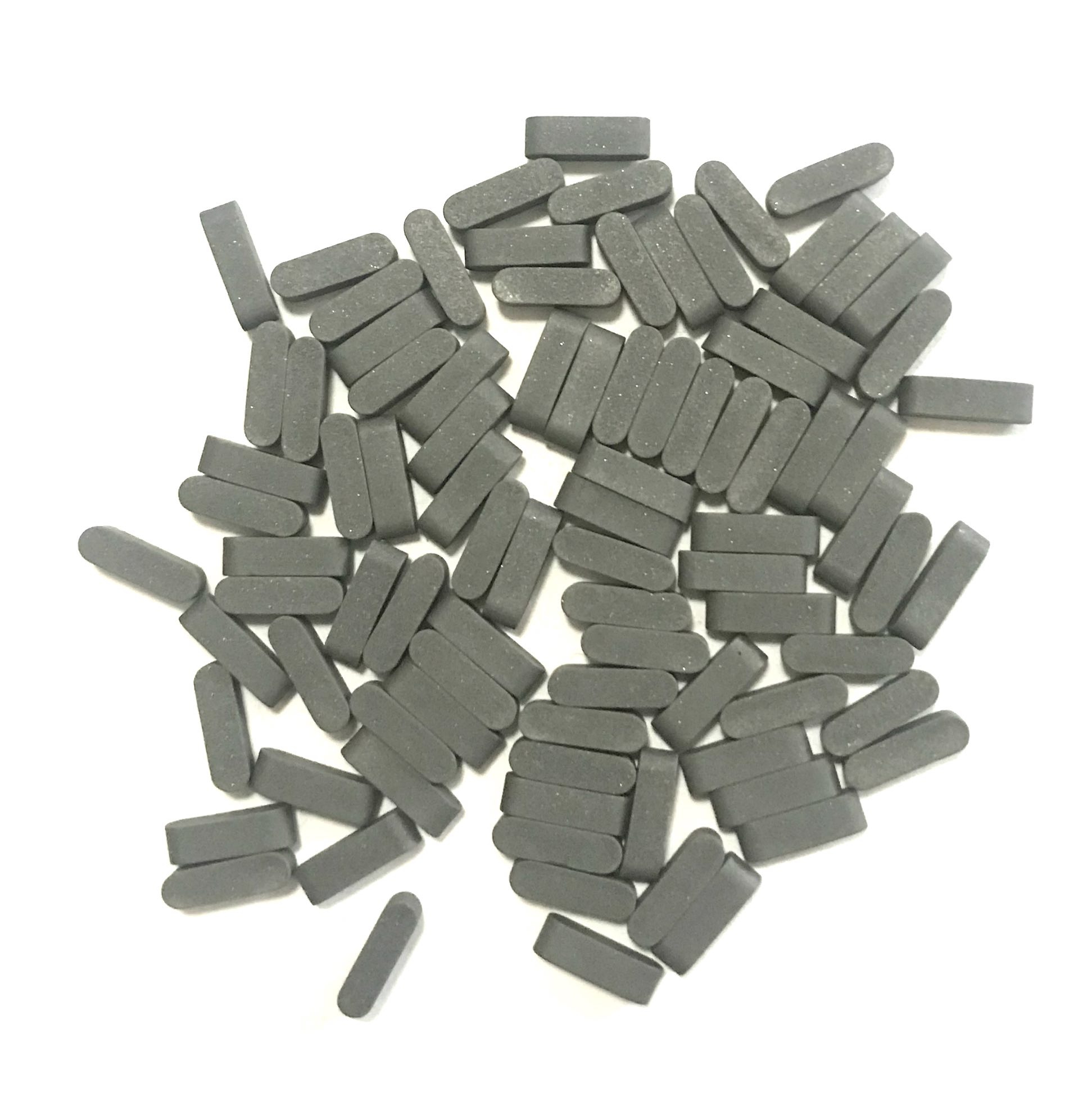

Shape
Specification
Dimension(W x H x L x R)

W : length H : height L : width.
R : radius of round.

HW100303015
10x3x3xR1.5
HW100603015
10x6x3xR1.5
HW100505025
10x5x5xR2.5
Shape
Specification
Dimension(D x H x RA)

D : diameter H: height R: radius of round
HW4060R
4x6xRA

Nonstandard products-i.e. those not conforming to any listed specification, may be supplied on request.
Packaging:100 pcs、200 pcs、300 pcs、500 pcs、1000 pcs a small plastic bag,5 bags、10 bags、20 bags in a big plastic bag,enwrapped by plastic film,in a paper box.
